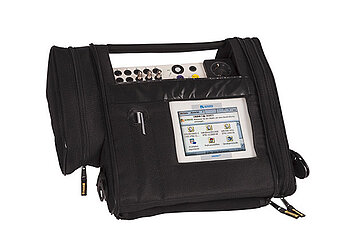

UNIMET® 810ST
The test system for service purposes
The first and only safety tester which automatically compares the ”reference values“ with later measurements according to the standards.
UNIMET® 810ST allows to define your own test procedures. Device history protocols (log book) can be managed by means of the free add-on PC software.
Movies for UNIMET® 810ST »
Anniversary offer: 40 years Bender safety testers.
Every UNIMET® 810ST comes with an extra! Choose the perfect anniversary gift for you.
The test system for service purposes
The first and only safety tester which automatically compares the ”reference values“ with later measurements according to the standards.
UNIMET® 810ST allows to define your own test procedures. Device history protocols (log book) can be managed by means of the free add-on PC software.
Movies for UNIMET® 810ST »
Anniversary offer: 40 years Bender safety testers.
Every UNIMET® 810ST comes with an extra! Choose the perfect anniversary gift for you.
Features
- The Windows user interface provides an easy-to-use solution
- Data exchange and memory via Control Center
- Automatic, semi-automatic and manual test sequences
- Data input via touch screen, keyboard or barcode scanner
- Visual inspection, electrical safety and functional test userdefinable
- Test sequences user-definable
- Data memory > 10.000 data records
- Filter function for fast data selection
- Management of test dates
- Multitenancy
- Catalogue system
- Test probe with two switching contacts for semi-automatic testing of conductive parts not connected to PE
Wide variety of interfaces
- RS-232 interface
- USB port for printer, scanner, keyboard and USB stick connection
- PS/2 port for scanner and keyboard
- Network connection via Ethernet (optional)
Standard accessories
- Carrier bag of robust design and universal carrying concept
- Measuring lead with test probe
- Measuring lead with test clip
- Null-modem cable
- VK701-7 for testing non-heating devices
- Data transfer software UNIMET® Control Center
Service
- 36-month calibration interval
- 36-month warranty
- Software updates to be always up-to-date
Applications
Standard compliant tests acc. to:
- IEC 60601-1, 3rd Edition 1)
- IEC 62353:2014
- DIN EN 62353 (VDE 0751-1):2015-10
- IEC 61010-1:2011-07 1)
- ÖVE/ÖNORM EN 62353:2009-01
- DIN VDE 0701-0702:2008-06
- ÖVE E8701-1:03-01
1) These standards can be activated as a licence in the basic device.
Standard-compliant measurements
- PE conductor resistance
- Insulation resistance
- Earth leakage current
- Protective conductor current
- Equipment leakage current
- Touch current
- Touch voltage
- Direct measurement method
- Differential measurement method
- Equipment leakage current-alternative method
- Applied part leakage current-alternative method
- Applied part leakage current AC and DC
- Patient auxiliary current AC and DC
- Applied part leakage current – mains voltage on F-Type
UNIMET® 810ST Variant(s)
The test system for manufacturers of medical devices UNIMET® 800ST – 25 A Version
Country specific device
| Device | Art.-No. |
|---|---|
| UNIMET® 810ST (D/D) | B96028020 |
| UNIMET® 810ST (GB/GB) | B96028024 |
| UNIMET® 810ST (CH/CH) | B96028026 |
| UNIMET® 810ST (B/B) | B96028027 |
| UNIMET® 810ST (US/US) | B96028028 |
| Software license for UNIMET®800ST/810ST Standard device for IEC 60601-1 | B96028200 |
| Software license for UNIMET®800ST/810ST Standard device for IEC 61010-1 | B96028201 |
External power source 25 A
| Device | Art.-No. |
|---|---|
| EPS800 (D/D) | B96028050 |
| EPS800 (GB/GB) | B96028054 |
| EPS800 (CH/CH) | B96028056 |
| EPS800 (B/B) | B96028057 |
| EPS800 (US/US) | B96028058 |
Optional Accessories for UNIMET® 810ST
| Device | Art.-No. |
|---|---|
| TP800 active test probe | B96020080 |
| Barcode scanner -PS/2 | B96020082 |
| DS32A Three-phase adaptor for testing medical electrical three-phase devices in operating condition (acc. to DIN EN 62353, DIN VDE 0751-1, DIN VDE 0701-0702) | B96020098 |
| TB3 Testbox | B96020025 |
| PK3 Test kit | B96020009 |
