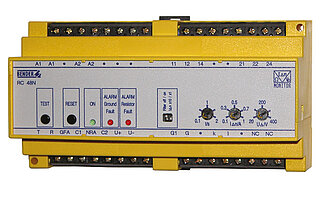

RC48N
The RC48N ground-fault neutral-grounding monitor is used to monitor high-resistance grounded installations. The maximum ground fault current in these systems is limited by a neutral grounding resistor to 5 A, 15 A or 25 A .
The RC48N ground-fault neutral-grounding monitor combines three functions in one device:
- Monitoring of the residual current in the grounding conductor.
- Voltage monitoring between the transformer neutral and ground.
- Monitoring of the grounding resistor for continuity (NGR).
If a value is not within the thresholds, a relay with two voltage-free changeover contacts will be activated.
The RC48N ground-fault neutral-grounding monitor is used to monitor high-resistance grounded installations. The maximum ground fault current in these systems is limited by a neutral grounding resistor to 5 A, 15 A or 25 A .
The RC48N ground-fault neutral-grounding monitor combines three functions in one device:
- Monitoring of the residual current in the grounding conductor.
- Voltage monitoring between the transformer neutral and ground.
- Monitoring of the grounding resistor for continuity (NGR).
If a value is not within the thresholds, a relay with two voltage-free changeover contacts will be activated.
Features
- Ground-fault monitor for high-resistance grounded installations with a limited fault current of 5 - 25 A
- Three-in-one functionality: Residual current, voltage and grounding resistor continuity
- Measures the residual current by means of a Bender residual current transformer
- Alarm easily recognizable by LED lights
- Alarm relay with adjustable trip time
- Measures resistance value and voltage drop of the NGR via coupling devices
- Alarm easily recognizable by LED lights
- The alarm relay can be used for the tripping of a load switch
- Depending on the type of load switch the operating mode of the alarm relay can be set to N/O operation or N/C operation
Applications
- High-resistance grounded installations with a limited fault current of 5…25 A
- Mining applications
RC48N Variant(s)
| Basic device | Supply voltage/ frequency range US | Power consumption | Art. No. |
|---|---|---|---|
| RC48N-935 | AC/DC 60…264 V 50…60 Hz | approx. 5.8 VA at AC 60 V approx. 8.5 VA at AC 264 V | B94013005 |
Optional Accessories for RC48N
| Type designation | Art.-No. |
|---|---|
| Remote alarm indicator and operator panel | B94071001 |
| Type designation | Art.-No. |
|---|---|
| CD1000 Coupling device, AC 0…1000 V | B98039010 |
| CD5000 Coupling device, AC 0…5000 V | B98039011 |
| Residual current transformer, 70 mm | B911777 |
| Residual current transformer, 105 mm | B911778 |
Downloads for RC48N
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| CE Declarations of conformity | RC48 | 84.0 KB | 2022/08/12 06:17:2512.08.2022 06:17:25 | ||
| Manuals | RC48N | 922.8 KB | DE | 2021/02/12 10:52:3212.02.2021 10:52:32 | D00426 |
| Manuals | RC48N | 922.8 KB | EN | 2021/02/12 10:52:3212.02.2021 10:52:32 | D00426 |
| Manuals | RC48N Manual (US) | 1.3 MB | EN | 2019/08/16 11:23:2416.08.2019 11:23:24 | |
| Application brochures | System Grounding in the Americas, Australia, South Africa and Other Regions | 576.7 KB | EN | 2019/05/13 10:29:2213.05.2019 10:29:22 | |
| Technical information | Guideline on NGR/Safety Ground Monitoring | 234.7 KB | EN | 2019/09/20 13:52:3320.09.2019 13:52:33 | |
| Technical information | NGRM500 Retrofit Guide (US) | 1.3 MB | EN | 2021/02/10 20:59:2210.02.2021 20:59:22 | |
| Product Brochures | Mining | 11.7 MB | ES | 2020/05/22 14:37:3122.05.2020 14:37:31 |
