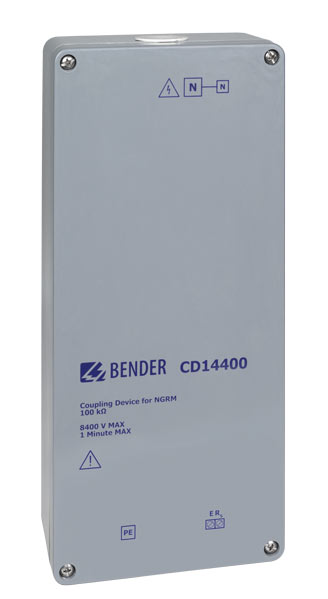

CD14400
The CD14400 can be used with an NGR monitor in HRG systems with a system voltage ULL up to 14.4 kV (UNGR = 8.4 kV).
The maximum operating altitude is 5000 m above mean sea level.
The CD14400 can be used with an NGR monitor in HRG systems with a system voltage ULL up to 14.4 kV (UNGR = 8.4 kV).
The maximum operating altitude is 5000 m above mean sea level.
Features
- Coupling device for NGRM
- Range of use up to 14400 V system voltage
- Application up to 5000 m
- IP54
Applications
- The coupling device is suitable for HRG applications up to a system voltage of 14400 V.
CD14400 Variant(s)
| Type | Nominal system voltage Un | Art. No. |
|---|---|---|
| CD14400 | Up to ULL =14400 V (UNGR = 8400 V) | B98039054 |
Downloads for CD14400
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| CE Declarations of conformity | CDx | 76.0 KB | 2022/08/12 06:17:2212.08.2022 06:17:22 | ||
| Declarations of Conformity | UKCA - CDx | 121.1 KB | 2022/12/20 05:59:2520.12.2022 05:59:25 | ||
| Manuals | CD14400 | 404.2 KB | DE | 2022/12/02 11:07:2302.12.2022 11:07:23 | D00346 |
| Manuals | CD14400 | 372.6 KB | EN | 2022/12/02 11:07:4902.12.2022 11:07:49 | D00346 |
| Datasheets | CD14400 | 450.7 KB | DE | 2023/03/16 11:55:3116.03.2023 11:55:31 | D00346 |
| Datasheets | CD14400 | 448.5 KB | EN | 2023/03/16 11:56:2416.03.2023 11:56:24 | D00346 |
| Datasheets | CD14400 | 450.2 KB | FR | 2023/03/16 11:57:4016.03.2023 11:57:40 | D00346 |
| Datasheets | CD14400 | 451.8 KB | ES | 2023/03/16 11:57:0016.03.2023 11:57:00 | D00346 |
