COMTRAXX® RCP115
- Display of web-based visualisations
- Multi-touch-enabled user interface
- Display resolution: 15.6″ with 1,920 × 1,080 px (Full HD, 16:9)
- Support for up to four different visualisation access points
- Flexible network connection with static IP addressing or DHCP operation
- Integrated interface for quick and easy commissioning

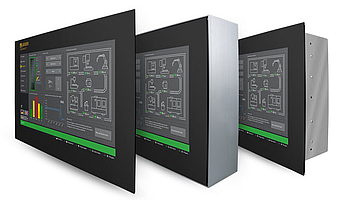

- Flexible mounting options: control cabinet installation, flush-mounted, surface-mounted and cavity wall mounting

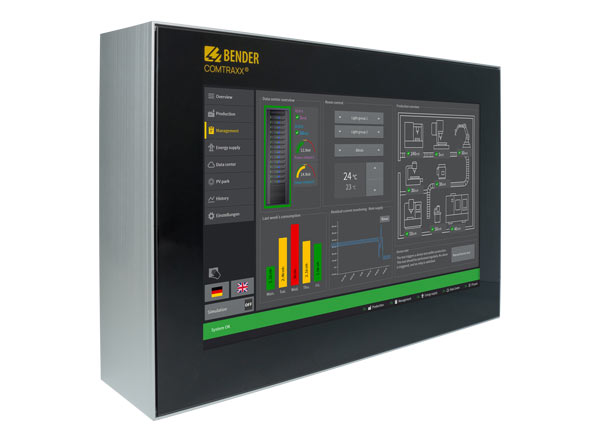

The COMTRAXX® RCP115 is a 15.6" industrial touch panel designed for showing web-based visualisations. It enables the display of condition monitoring visualisations from the COMTRAXX® series as well as visualisations from third-party manufacturers via standardised web interfaces.
The panel is equipped with a powerful processor and is therefore suitable for complex visualisations with high graphics loads and animated content, which are displayed smoothly and without stuttering.
The touch panel can be seamlessly integrated into existing IT and automation networks via its Ethernet interface.
- Display of web-based visualisations
- Multi-touch-enabled user interface
- Display resolution: 15.6″ with 1,920 × 1,080 px (Full HD, 16:9)
- Support for up to four different visualisation access points
- Flexible network connection with static IP addressing or DHCP operation
- Integrated interface for quick and easy commissioning
- Flexible mounting options: control cabinet installation, flush-mounted, surface-mounted and cavity wall mounting
The COMTRAXX® RCP115 is a 15.6" industrial touch panel designed for showing web-based visualisations. It enables the display of condition monitoring visualisations from the COMTRAXX® series as well as visualisations from third-party manufacturers via standardised web interfaces.
The panel is equipped with a powerful processor and is therefore suitable for complex visualisations with high graphics loads and animated content, which are displayed smoothly and without stuttering.
The touch panel can be seamlessly integrated into existing IT and automation networks via its Ethernet interface.
Applications
- Display of condition monitoring data in real time
- Centralised visualisation for decentralised plant or system architecture
- Centralised visualisation that can be displayed simultaneously at multiple locations without additional programming effort
- On-site visualisation directly in the plant room
- Integration of web-based third-party visualisation
- Use in safety-critical and protected areas
Available interfaces:
- Interfaces:
- RJ45 Ethernet: 10/100/1000 Mbps
- USB: USB 2.0 Hi-Speed Host
COMTRAXX® RCP115 Variant(s)
| Type | Supply voltage | Energy consumption | Art.-No. |
|---|---|---|---|
| RCP115 | DC 24 V | Typ. 16 W ≤ 30 W | B95061250 |
Optional Accessories for COMTRAXX® RCP115
| Type | Application | Art. No. |
|---|---|---|
Surface-mounting enclosure | Suitable for installation on a flat wall. Mounted using four screws. The cable entry can be made either from the wall or from the side on any side. | B95062910 |
| Flush-mounting enclosure | Suitable for installation within the wall as a flush-mounted solution and for cavity walls. Cable entry is possible from the side. Hooks for plaster mounting are already integrated into the housing. Please refer to the manual. | B95062915 |
Power supply | STEP-PS/1 AC/24 DC/1.75 – For powering the RCP115 | B94053111 |
| PoE Splitter | For powering the RCP115 in installations where only an Ethernet cable with Power over Ethernet (PoE) is available. The PoE splitter separates the data transmission from the power supply of the PoE signal and provides the required supply voltage for the RCP115. This allows the device to be installed flexibly without a separate power supply, making it ideal for retrofits, where space is limited, or within existing network infrastructures. | B95062920 |
Services
We would be happy to create customised visualisations for your system, tailored flexibly and precisely to your requirements.
Our technical consultants will support you right from the start, working with you to clarify your requirements and develop a visualisation that is perfectly suited to your application.
Please contact our sales team to discuss your requirements and receive a bespoke solution.
Downloads for COMTRAXX® RCP115
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| RCP115 | Datasheets | 1.4 MB | DE | 2026/04/2121.04.2026 | D00547 |
| RCP115 | Datasheets | 1.4 MB | EN | 2026/04/2121.04.2026 | D00547 |
| RCP115 | Manuals | 2.1 MB | DE | 2026/04/1717.04.2026 | D00547 |
| RCP115 | Manuals | 2.1 MB | EN | 2026/04/1717.04.2026 | D00547 |
| RCP115 | Quickstarts | 958.7 KB | DE | 2026/04/1717.04.2026 | D00547 |
| RCP115 | Quickstarts | 958.7 KB | EN | 2026/04/1717.04.2026 | D00547 |
| RCP115 | CE Declarations of conformity | 227.1 KB | 2026/05/1313.05.2026 | ||
| UKCA - RCP115 | Declarations of Conformity | 167.2 KB | 2026/05/1313.05.2026 |
