E820
- Measurement accuracy according to IEC62053-22 Class 0.5s
- 2 x RS-485 Modbus, I/O interfaces, LCD display, 128 MB data logging, and 2 x Ethernet communication ports.
- Designed to CE and IEC standard

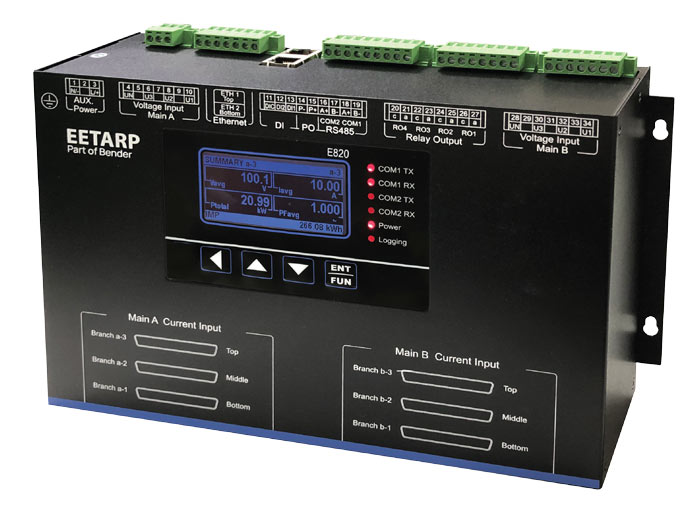

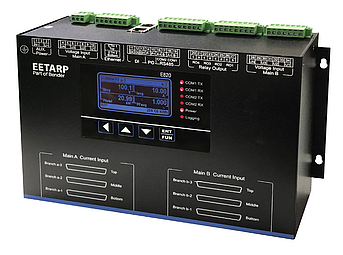

The E820-Series (iBCPM) is an effective branch circuit power monitoring system and part of the Graphene-Meter-Series. The E820 meets today’s demand for efficient energy monitoring with precision and flexibility.
Compact and easy to install, it uses advanced microprocessors and fast sampling AD technology for accurate measurement at a competitive cost. With 6 voltage and up to 126 current channels, it supports multi-phase, multi-circuit applications while reducing system complexity. Standard features include 2 x RS-485 Modbus, I/O interfaces, LCD display, 128 MB data logging, and 2 x Ethernet communication ports.
- Measurement accuracy according to IEC62053-22 Class 0.5s
- 2 x RS-485 Modbus, I/O interfaces, LCD display, 128 MB data logging, and 2 x Ethernet communication ports.
- Designed to CE and IEC standard
The E820-Series (iBCPM) is an effective branch circuit power monitoring system and part of the Graphene-Meter-Series. The E820 meets today’s demand for efficient energy monitoring with precision and flexibility.
Compact and easy to install, it uses advanced microprocessors and fast sampling AD technology for accurate measurement at a competitive cost. With 6 voltage and up to 126 current channels, it supports multi-phase, multi-circuit applications while reducing system complexity. Standard features include 2 x RS-485 Modbus, I/O interfaces, LCD display, 128 MB data logging, and 2 x Ethernet communication ports.
Features
- Up to 126 Single phase current input measurement, 2 Separate Voltage system input, programmable wiring system
- SCSI cable design connection for easy wiring connection
- 128 MB Flash ROM for data log
- 2 Modbus TCP/IP for daisy chain connection
- 2 Modbus RTU for Scada and local monitoring display
- 2 Digital Input, 4 Relay Output and 1 Pulse output for alarm, I/O function and alarm
- Circuit breaker abnormalities detection
- IEC 62053-22 Class 0.5S
- Designed to CE and IEC standard
Applications
- Low voltage distribution networks
- Commercial / residential building
- Data Center (PDUs)
- Retails shop
- Dormitories
- Aims at distributed electricity management
